Coto-Coil Company is still in business today. Origionally started by
Universal Winding Co. of Providence, RI, who made the machines that were used in the textile industry 2.


Universal Winding Company


Universal Winding Company Plant in Auburn, RI


Radio Retailing November 1927




Complete automatic coil winding machines. Left, machine for winding wire in layers, each as an angle to the axis of the coil, and to the preceding layer: makes a self-supporting coil requiring no binding nor flanges, narrow coils of large diameter are made on this machine. Right, machine for making Universal interweave or cross-wound coils, in which a cotton binding is interwoven with the parallel layers of wire. Both machines have automatic brakes for stopping machine in case of wire breaking, and counters to stop machine when required number of turns are completed. Made by Universal Winding Co., Providence. R. I. 1919 7


With $100,000 in capital stock Coto-Coil was founded in 1917 by Rob A Leeson 1, one of its principle leaders was Thomas P Giblin.

In 1921 John S Elliot is the manager at 87 Willard Street, the office and main factory and there is a branch office at 95 South Street in Boston. 9

Click to enlarge
Robertson Cataract Electric Catalog
1922-1923
Click to enlarge
Radio Broadcast
January 1925
Click to enlarge
Radio Broadcast
February 1925
Click to enlarge
Radio Broadcast
March 1925
Click to enlarge
Radio Broadcast
April 1925


In 1930 we find some ads and an article for Coils Inc. at 1183 Eddy St, Providence, RI. The article states that Coto-Coil equipment has been taken over by Coils Inc.. F C Hendrickson, formally associated with Coto-Coil for the last 9 years is General Manager of the new Coils Inc. company. In 1938 Hendrickson becomes the President of Coto-Coil 6 and in 1940 the receiver of the company 11

Radio Industries
June 1930

Radio Industries
June 1930

1930



In 1936 the address seen for Coto-Coil changes to 229 Chapmen St, Providence, RI.

Communicatiom and Broadcasting
Magazine
April 1936

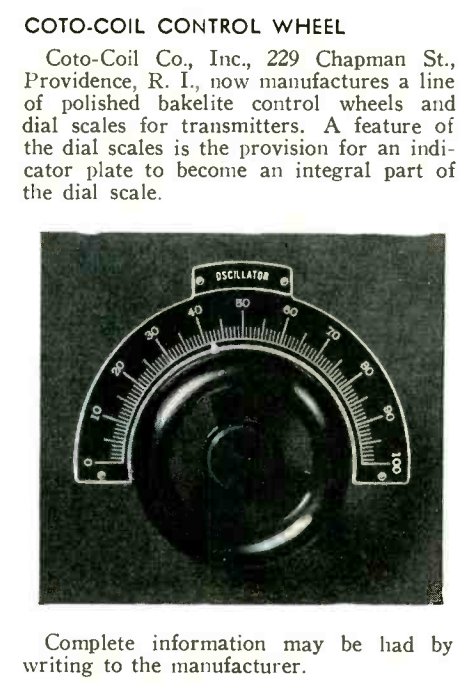

Service Magazine April 1936

Click to enlarge
QST 1937

Radio Today March 1939



Other engineers 4 working for Coto-Coil were Granville P Lindley b1891 (Lead Engineer of the Byrd Expedition II) 3 and Lewis Bellem (1BES). Lindley and Bellam were also responsible for bringing Radio Equipment to Pitcairn Island in the South Pacific made famous by the landing place of the mutineers from the HMS Bounty. The island, cut off from the rest of the world since 1790, received a modern short-wave receiver and a 60-watt transmitter in 1938. The equipment was made possible by the generous donation of material and labor of many amateurs and manufacturers under the instigation of the Coto-Coil Company. The companies involved were Aerovox Corporation, American Lava Corp, Amperex Electronic, Bassett Research, Biley Electric Company, Cardwell Manufacturing Company, Coto-Coil Company, Kenyon Transformer Company, Ohmite Manufacutring Company, Par-Metal Products, Parris-Dunn Corporation, Pioneer Genemotor Corporation, RCA Radiotron, E M Sargent Company, Shure Brothers, Triplett, Willard Storage Battery Company.. 5


Click to enlarge
Providence Journal December 5, 1937





Click to enlarge
Providence Journal January 16, 1938

Radio Daily January 28, 1938

Click to enlarge
Radio Guide
February 19, 1938

Click to enlarge
Providence Journal January 17, 1938

Radio Craft July, 1938

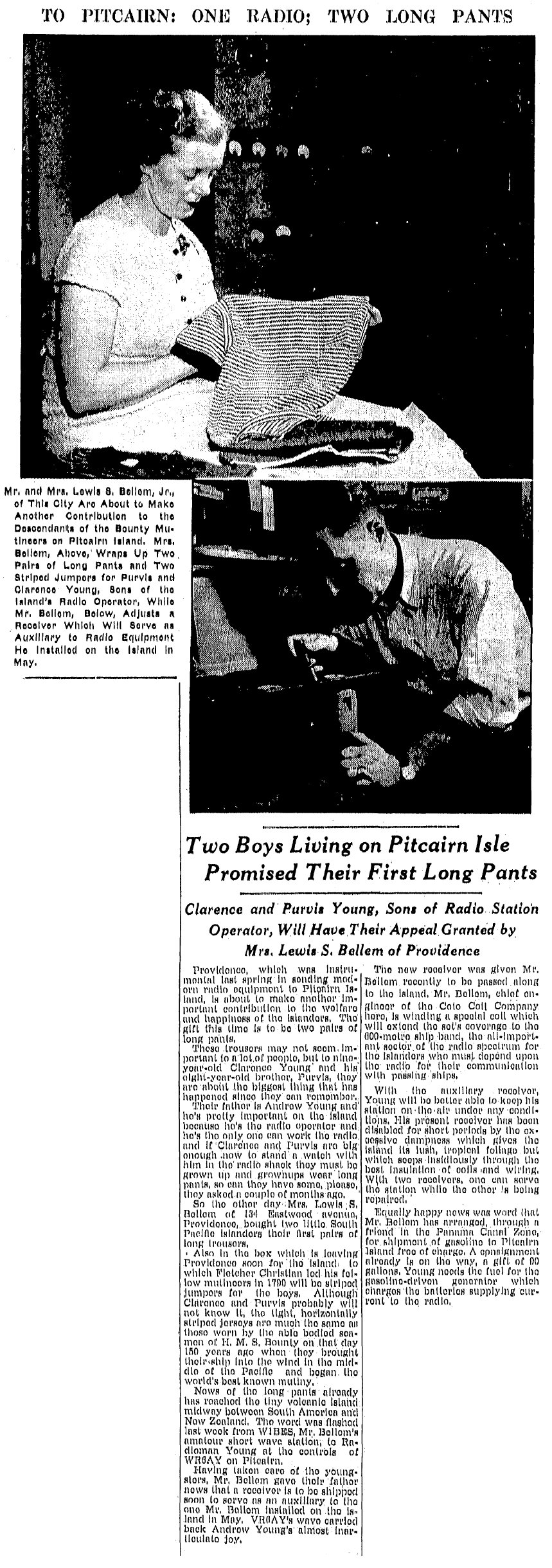

Woonsocket Call July 27, 1938

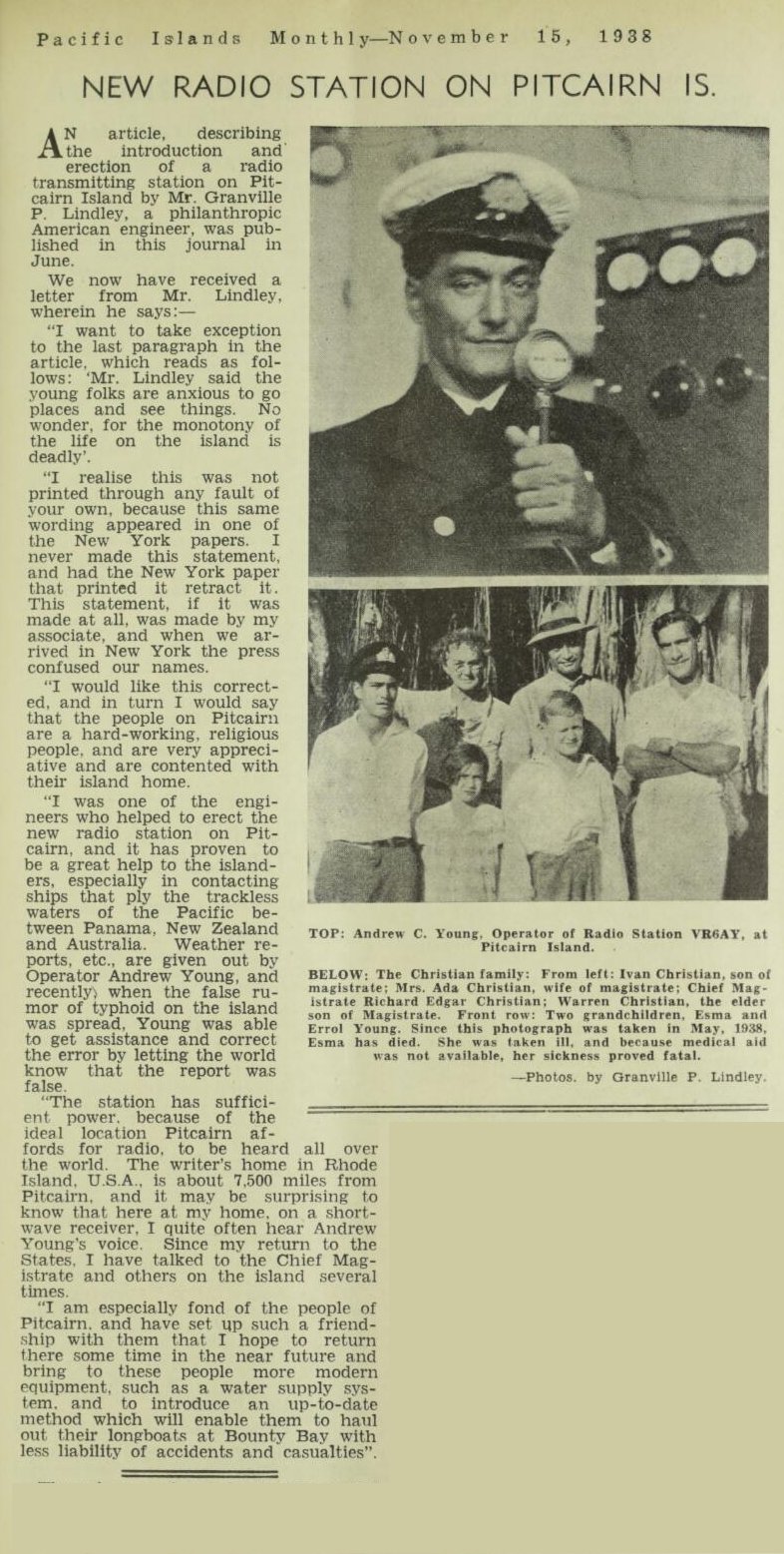

Pitcairn Islanda as a Port Of Call
A Record 1790-2010 2012_1938

Providence Journal March 26, 1939

In 1938, President of Coto-Coil was F C Hendrickson 6

Hendrickson was made the receiver of the company on September 3rd, 1940

Providence Journal September 3, 1940

Click to enlarge
Radio Today
March 1940



Coto Technology is still in business today. Their tag line now is "The World Leader in Small Signal Switching Solutions", and their products today include, Reed relays and Switches, Mosfet relays, and the world's smallest reed sensor. In the late teens and twenties they were the leader in Radio related coils. They also made at least one radio receiver as shown in the ad below.

Universal Winding eventually became the Leesona Corp which is still in business today.


Bristol Phoenix
February 27, 1948

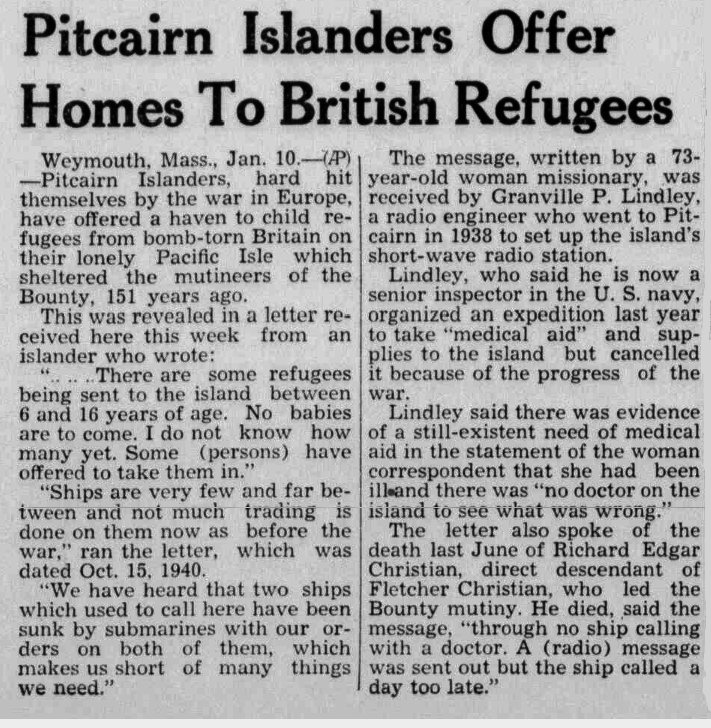

The Bristol Resident was Granville P Lindley

Providence Journal November 11, 1949

Providence Journal June 29, 1950

Electronics July 1952

Providence Journal Apri l4, 1954

Click to enlarge
Providence Journal September 23, 1954

Click to enlarge
Providence Journal July 3, 1955
Providence Journal September 28, 1952 Article Mentioned in the article above

Click to enlarge
Providence Journal February 17, 1959

Click to enlarge
Providence Journal March 31, 1959

Providence Journal September 8, 1959

Click to enlarge
Providence Journal September 25, 1959

Providence Journal September 27, 1959

Providence Journal February 18, 1960




Products


Click to enlarge
Type 4500 "SPECIAL" Audio Frequency Transformer.

Click to enlarge
Type 4500 "SPECIAL" Audio Frequency Transformer.

Radio News
January 1921



















Click to enlarge
Coto Coil Variable Air Condenser

Click to enlarge
Coto Coil Variable Air Condenser

Click to enlarge
Coto Coil Variable Air Condenser

Click to enlarge
Coto Coil Variable Air Condenser

Click to enlarge
Coto Coil Variable Air Condenser

Click to enlarge
Coto Coil Type 3500 Variable Air Condenser

Click to enlarge
Coto Coil Type 3500 Variable Air Condenser

Click to enlarge
Coto Coil Type 3500 Variable Air Condenser

Click to enlarge
Coto Coil Type 3500 Variable Air Condenser

Click to enlarge
Coto Coil Type 3500 Variable Air Condenser

Click to enlarge
Coto Coil Type 3500 Variable Air Condenser

Click to enlarge
Coto Coil Type 3500 Variable Air Condenser Template

Click to enlarge
Inductance Coil, "Duo-Lateral" Type 75.

Click to enlarge
Inductance Coils, Turns?, 50 Turns, Turns?

Click to enlarge
Inductance Coil, "Duo-Lateral" Box.

Click to enlarge
Type 5000 Audio Frequency Amplifying Coil and box
Single and two ganged together.

Click to enlarge
Type 1250 "Duo-Lateral coil".

Click to enlarge
Type 250 Inductance COil
Patented April 8, 1924
For Experimental and Amateur Use Only

Click to enlarge
Type 7000 Tube Socket.

Click to enlarge
Type 8000 Compact Bakelite Variometer.

Click to enlarge
Type 9000 Compact Variocoupler.

Click to enlarge
Set of "Duo-Lateral" coils very much like Coto-Coil.

Click to enlarge
Coto Coil Company
Symphonic
Photo Courtesy of Dick Parks




Click to enlarge
Coto Coil Company
Symphonic
Photo Courtesy of Dick Parks



Click to enlarge
Coto Coil Company
Symphonic
Photo Courtesy of Dick Parks



Click to enlarge
Coto Coil Company
Symphonic
Photo Courtesy of Dick Parks



Click to enlarge
antiqueradios.com
Click to enlarge
Coto 25 ohm inductance coil with box
Photo Courtesy of "wazz"



Click to enlarge
Click to enlarge
CI-45 Control Wheel



Click to enlarge

Inductor Mounting Base
CI-6 TLM



Click to enlarge

Inductor Mounting Base
CI-6 TLM



Click to enlarge

Inductor Mounting Base
CI-6 BTLM



Click to enlarge

Transmitting Inductance
CS-610-E



Click to enlarge

Transmitting Inductance
CI-160A



Click to enlarge

Transmitting Inductance
CI-160TVL



Click to enlarge

Transmitting Inductance
CI-40A



Click to enlarge

Transmitting Inductance
CI-60TVL



Click to enlarge

Transmitting Inductanceg
CI-80A



Click to enlarge

Transmitting Inductanceg
CI-X



Click to enlarge

Transmitting Inductance
CI-10TVL



Click to enlarge

Transmitting Inductance
CI-20BY



Click to enlarge

Transmitting Inductance
CI-60BT



Click to enlarge

Transmitting Inductance
CI-20BT



Click to enlarge

Transmitting Inductance
680E



Click to enlarge

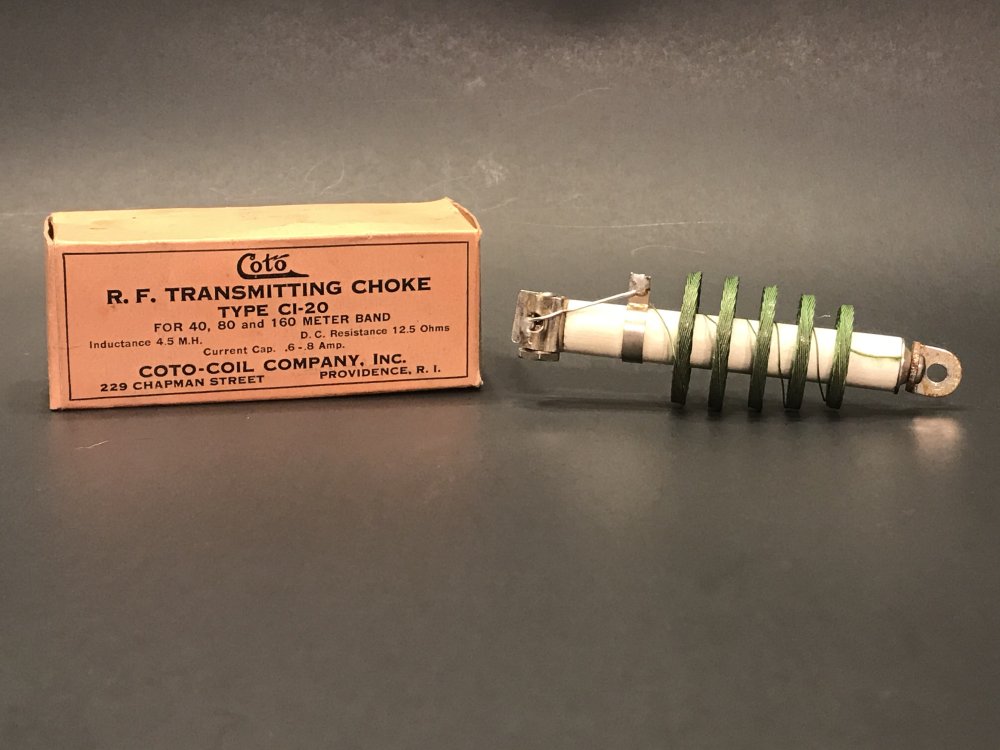

RF Transmitting Choke CI-20
680E



Click to enlarge

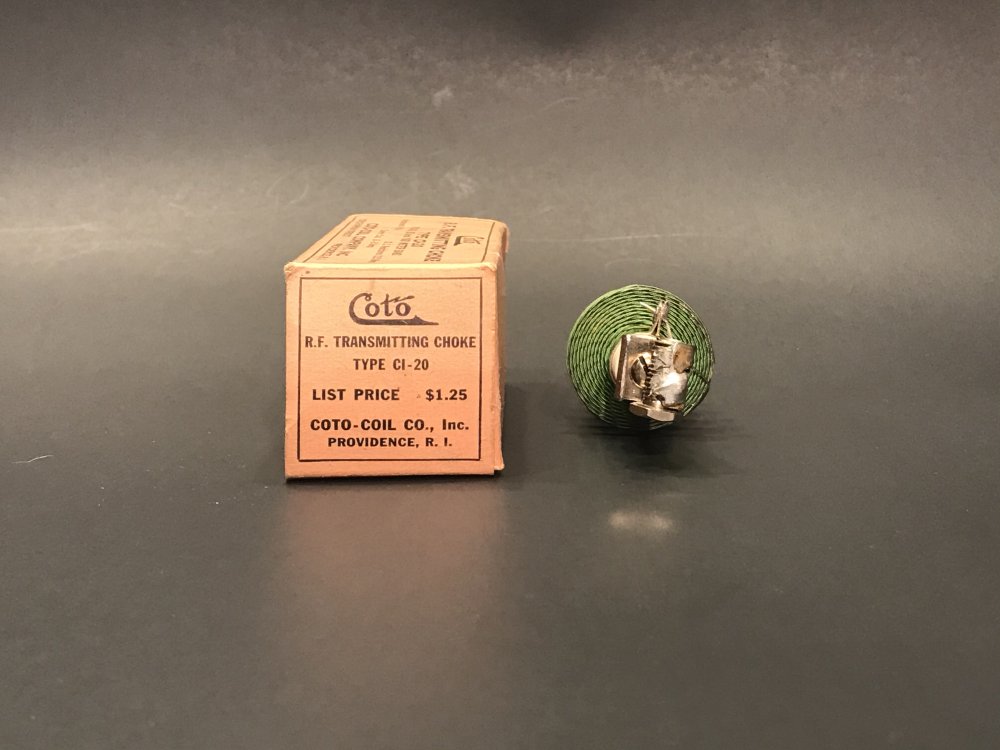

RF Transmitting Choke CI-20
680E



Click to enlarge

"PEE-WEE" Inductance
Tube Socket Mounting
CS-610-C




600 Meter
Transitting Inductance Coil



Click to enlarge
Click to enlarge
QSL Card with radio discription that
includes COTO-COIL RF stage
Lewis S Bellem, 90 Stanwood St, Providence, RI
Lewis S Bellem was an Engineer at COTO-COIL



Click to enlarge
Click to enlarge
QSL Card with radio discription that
includes COTO-COIL RF stage
Lewis S Bellem, 90 Stanwood St, Providence, RI
Lewis S Bellem was an Engineer at COTO-COIL



Click to enlarge
Click to enlarge
QSL Card
Lewis S Bellem, 90 Stanwood St, Providence, RI
Lewis S Bellem was an Engineer at COTO-COIL

New England Wireless and Steam Museum

Click to enlarge
antiqueradios.com
Click to enlarge
Coto molded dial
Photo Courtesy of "grid-leak"



Click to enlarge
antiqueradios.com
Click to enlarge
Coto tuning cap
Photo Courtesy of "grid-leak"




Variable Air Condenser
Model 3010, .001MF




Variable Air Condenser
Model 3010, .001MF




CI-45 Control Wheel




CI-45 Control Wheel




CI-45 Control Wheel




CI-45 Control Wheel




CI-45 Control Wheel




CI-40 Control Wheel






Yale Peabody Museum of Natural History

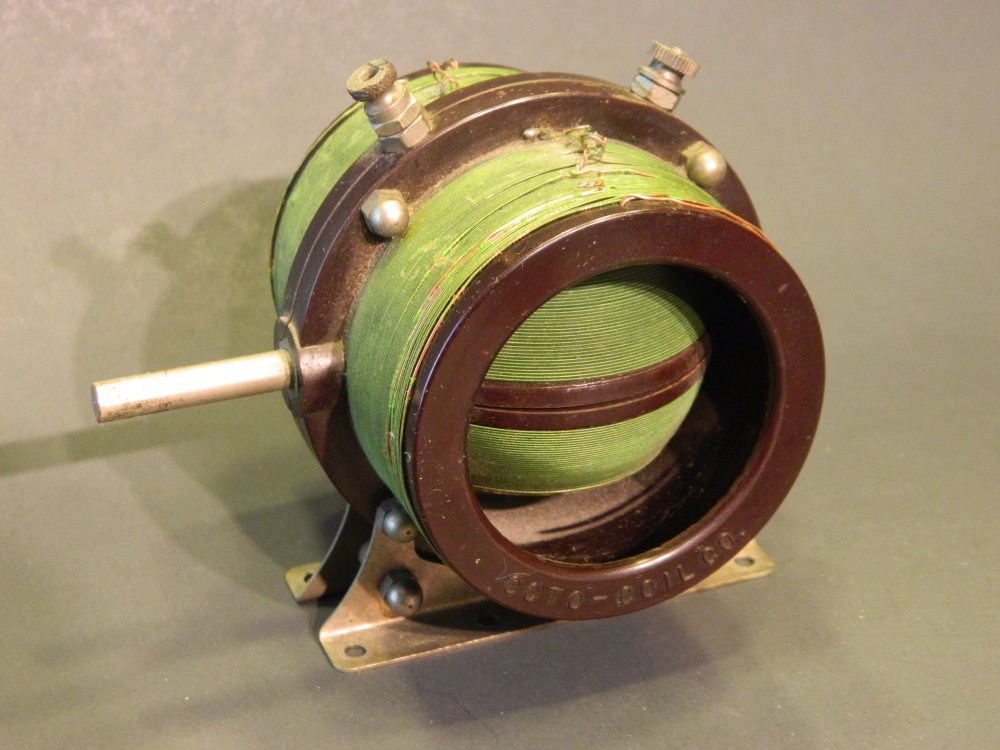

Coto-Coil Vario-Coupler, 1920's

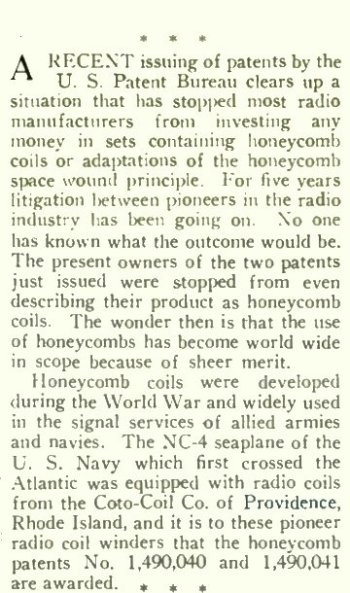

Giblin was visited in January, 1919 by Robert F. Gowen an engineer who worked for Lee DeForest. Ever since the cancelation of government contacts, Deforest became interested in the amateur market and he sent Gowen to meet with Giblin to work out the manufacutring of Honeycomb coils to be used in Gowens newly conceived "unit" sets with plug in coils.9

Click to enlarge

DeForest Coils
Wound by Coto-Coil


Click to enlarge

DeForest Coils
Wound by Coto-COil


Click to enlarge

DeForest Coils
Wound by Coto-Coil


Click to enlarge

DeForest Coils
Wound by Coto-Coil


Click to enlarge

DeForest Coils
Wound by Coto-Coil


Click to enlarge

DeForest Coils
Wound by Coto-Coil


Click to enlarge

DeForest Coils
Wound by Coto-Coil



Ads

Click to enlarge



Click to enlarge



Click to enlarge



Click to enlarge



Click to enlarge



Click to enlarge



Click to enlarge



Click to enlarge


antiqueradios.com

Coto Coil Company
Symphonic
Flyer Courtesy of Alan Douglas and Merrill Bancroft



Click to enlarge
Providence Journal
November 26, 1922



Click to enlarge
Providence Journal
December 24, 1922



Click to enlarge
Radio Digest November 17, 1923

Click to enlarge
Providence Journal
December 14, 1924

Click to enlarge
Providence Journal
November 30, 1924

Click to enlarge
Providence Journal
December 21, 1924

Click to enlarge
Providence Journal
January 25, 1925

Click to enlarge
Providence Journal
February 8, 1924



Providence Journal
September 10, 1922





Radio Broadcast January, 1923





Solenoid Coil and Field Coil 1919 7





Square Cross-Wound COil 1919 7



antiqueradios.com
Click to enlarge
St Louis Post-Dispatch
December 27 1924



antiqueradios.com
Click to enlarge
Coto Coil Company
Symphonic
Photo Courtesy of Alan Douglas


Click to enlarge
Radio Retailing February 1926
Click to enlarge
Radio Progress, April 15th, 1924.
Click to enlarge
Radio Progress, May 15th, 1924.
Click to enlarge
Radio Progress, April 1st, 1924.
Click to enlarge
Radio Progress, May 1st, 1924.
Click to enlarge
Radio News January 1924
Click to enlarge
Radio Progress, July 1st, 1924.
Click to enlarge
Citizens Radio Call Book, May, 1923.
Click to enlarge
Citizens Radio Call Book, Fall, 1924.

Click to enlarge
Everyday Engineering, June 1920.

The Radio Trade Directory, 1925.

Click to enlarge
The Radio Trade Directory, 1924.

Click to enlarge
Popular Radio, December, 1923.

Click to enlarge
Providence Journal December 9, 1923

Click to enlarge
Digest, March, 1923.

Click to enlarge
Popular Radio, December, 1923.

Click to enlarge
Electrical Record, December, 1922.

Click to enlarge
Electrical Record, December, 1922.

Click to enlarge
Radio News, November, 1920.

Click to enlarge
Radio News, May, 1921.

Click to enlarge
Radio News, March, 1921.

Click to enlarge
Radio, June, 1922.

Click to enlarge
Radio News November, 1922.

Click to enlarge
QST February, 1922

Click to enlarge
Popular Science, March, 1924.

Click to enlarge
Providence Journal September 1922.

Click to enlarge
Radio News, December, 1920.


Click to enlarge
Radio March, 1923.

Click to enlarge
Radio News, August, 1921.

Click to enlarge
Radio News, February, 1922.

Click to enlarge
Radio Digest, December, 1923.

Click to enlarge
Providence Journal
October 29, 1922.

Click to enlarge
Providence Journal
October 29, 1922.

Click to enlarge
Providence Journal
October 29, 1922.

Click to enlarge
Providence Journal
October 8, 1922.

Click to enlarge
Providence Journal
November 5, 1922.

Click to enlarge
Providence Journal
September 3, 1922.

Click to enlarge
Radio June 1922.

Click to enlarge
Radio Digest April 24, 1924

Click to enlarge
Radio Digest July 12, 1924

Click to enlarge
Radio Digest August 30, 1924

Click to enlarge
Radio Digest December 8, 1923

Click to enlarge
Communication and Broadcast
Engineering, April 1936.


Communication and Broadcast
Engineering, April 1936.


Radio News, July 1940.

Click to enlarge
The Bridgeport Telegram
September 22, 1923.


Popular Radio
March 1926

Radio Industry September, 1925.
5

Pitcairn Now in 'Radio Circle'


Click to enlarge

First Day Cover, Pitcairn Island, March 18, 1938


Click to enlarge

First Day Cover, Pitcairn Island, March 18, 1938


Click to enlarge

First Day Cover, Pitcairn Island
L S Bellem Jr
Director of Engineering
March 18, 1938


Click to enlarge

First Day Cover, Pitcairn Island
Granville P Lindley
Radio Engineer
March 18, 1938


Click to enlarge

First Day Cover, Pitcairn Island
L S Bellem Jr
Director of Engineering
March 18, 1938


Click to enlarge

First Day Cover, Pitcairn Island
Granville P Lindley
Radio Engineer
March 18, 1938


Click to enlarge

Letter to Granville P Lindley, November 17, 1939




Marconi Stamp with Pitcairn Island Station

Pitcairn Island Exbidition Recording


Click to enlarge


Click to enlarge

The Evening News (Harrisburg, Pennsylvania)
24 Feb 1938, Thu Page 20



Click to enlarge

Woonsocket Call January 18, 1938


A NEW VOICE FOR "PITC"
PITCAIRN ISLAND
By LEW BELLEM W1BES Chief Engineer,
Coto-Coil Co., Inc.


ECHO OF YESTERDAY
by JAMES STREET
RADIO GOES TO PITCAIRN, BRINGING THE
WORLD TO DESCENDANTS OF MUTINEERS OF
THE BOUNTY WHO FLED THERE 148 YEARS AGO



Click to enlarge

Radio News
May 5, 1938


Click to enlarge

Pawtucket Times May 12, 1938


Woonsocket Call May 24, 1938


Woonsocket Call June 2, 1938


Woonsocket Call August 12, 1938


Woonsocket Call January 10, 1941


Woonsocket Call February 16, 1956


Woonsocket Call December 18, 1956

Find a Grave


Click to enlarge

Granville P Lindley and L. S. Bellem, Jr.
Press Photo (Front)
Back from Pitcairn Island
May 23rd, 1938


Click to enlarge

Press Photo (Back)
Back from Pitcairn Island
May 23rd, 1938


Click to enlarge

Pawtucket Times May 23, 1938


Click to enlarge

Providence Journal May 24, 1938


Pawtucket Times June 17, 1938


Pawtucket Times August 12, 1938


Click to enlarge

Providence Journal
September 19, 1938


Click to enlarge

Pacific Islands Monthly
November 15, 1938


Click to enlarge

Providence Journal February 5, 1939


Click to enlarge

Providence Journal February 12, 1939


Click to enlarge

Providence Journal January 26, 1940


Click to enlarge

Providence Journal January 28, 1940


Click to enlarge

Pawtucket Times February 16, 1940


Click to enlarge

Biddeford Daily Journal January 10, 1941


Click to enlarge

Manchester Evening Hearld January 10, 1941



Radio News, January 1921.

Click to enlarge
Popular Radio, May, 1923.

Click to enlarge
Radio, June, 1922.

Click to enlarge
Electrical world, 1922.

Click to enlarge
The Edison Monthly VOL10 1917.

Click to enlarge
Radio Engineering, June 1931.



Click to enlarge
Radio Today
April 1939



Click to enlarge
Providence Journal October 5, 1922


Click to enlarge
Radio News, Aptil 1923

Click to enlarge
Wireless Age, July 1924.


Click to enlarge
Radio News, April 1923.


Click to enlarge
Electrical Merchandising, May 1922.

Click to enlarge
Electrical Merchindising
November, 1923



Click to enlarge
Radio Broadcast May 5, 1925





Mid 1940's Ads

I included this series of mid 1940's ads because
they look like older photos of the Coto-Coil factory


Click to enlarge
Coto Close-Ups

Click to enlarge
Modern Coil Windings
On Bobbins

Click to enlarge
Modern Coil Windings
With Yarn

Click to enlarge
Modern Coil Windings

Click to enlarge
Modern Coil Windings
Partial View of Assembly Department

Click to enlarge
Modern Coil Windings
Partial View of
Automatic Coil Winding Department

Click to enlarge
Coto-Coil Factory April 1945

Click to enlarge
Cascade Frequency Multiplier May 1945

Click to enlarge
Electrical Coil Windings July 1944

Click to enlarge
Things to Come August 1944

Click to enlarge
Report 1948

Click to enlarge
Coils for Contact Capsules 1962


PATENTS


US1577749
Coil Mounting

US1490040
Electrical Coil

US1490041
Electrical Coil

US1478342
Electrical Air Condenser

US1576638
Electrical Socket

US110995
Hand COntrol For Radio
And Like Aparatus

US1278993
ELECTRICAL COIL AND
METHOD OF WINDING SAME

US1463834
WINDING MACHINE

US1458194
STARTING AND STOPPING MECHANISM
FOR WINDING MACHINES

US2116409
WINDING MACHINE

US2116410
WINDING MACHINE

Wireless Age, July, 1924.
